LEAN AUDIO No.1 for PA Loudspeakers, Guitar Speakers, Bass Guitar Speakers & HI FI speakers

FaitalPRO HF204 16ohm 80watt 2" NEO Compression Driver

£178.63

Quantity:

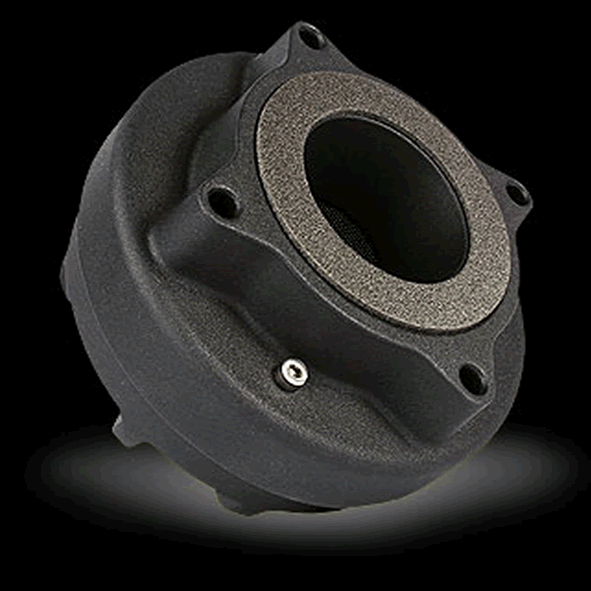

FaitalPRO HF204 2" throat NEO Compression Driver Speaker
A high-frequency compression driver with a 65mm voice coil, 2” throat, and a Ketone Polymer diaphragm
diaphragm.
The HF204 first special feature is an annular phase plug equipped with four slots that improves performance in high frequencies.
FaitalPRO have based the magnet assembly for the HF204 on neodymium slugs this translates into signicant cost advantages whilst guaranteeing final performance.

The extended response up to 18kHz and the minimum crossover frequency advised, equal to 900Hz, make it
universally suited for use in two-way or three-way acoustic systems and enclosures.

The strong 80W nominal power (AES) and 160W maximum makes it preferred choice in almost any configuration
.
The polymer diaphragm is very light and dampened compared to similar products that rely on metals, such as
aluminium and titanium, and works to positively characterize the resonance, making its sound less aggressive.

See specification tab for technical details or Click HERE for full details and response curves. (opens in new window)

Model: FaitalPRO HF204

note: Price includes VAT

Throat Diameter

2", 50.8mm
Nominal Impedance

16 ohms
AES Power Rating

80W
Sensitivity

108dB
Frequency Range

0.5kHz-18kHz
Voice Coil Diameter

2.56" 65mm
Former Material

Kapton
Magnet Gap Depth

0.17", 4.2mm
Flux Density

1.7 T
Magnet Composition

Neodymium
90° Mounting Holes Diameter (4xM6)

102mm, 4.02"
Overall Diameter

130.5mm, 5.14"
Speaker Depth

62mm, 2.44"
Diaphragm Material

Keytone Polymer
Unit Weight 5.81lbs, 2.4kg

Please Choose:



  • 3 Units in Stock
