LEAN AUDIO No.1 for PA Loudspeakers, Guitar Speakers, Bass Guitar Speakers & HI FI speakers

FaitalPRO HF100 8ohm 30watt 1" Compression Driver

£32.84

Quantity:

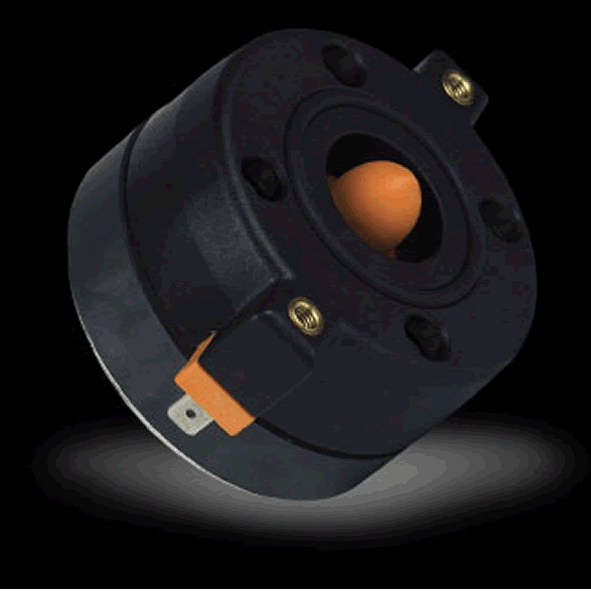

FaitalPRO HF100 1" throat Compression Driver Speaker

From the FaitalPRO 1" NEO Compression Driver series, the HF100 delivers compelling sonic quality with 30w RMS power handling for heavy-duty professional audio applications. A perfect partner for the FaitalPRO range of PA drivers - the HF100 offers excellent sensitivity, quality and value.
Designed & manufatured in Italy and provided exclusively by Lean Business, this FaitalPRO compression driver comes complete wth 2 years warranty.

Model: FaitalPRO HF100

note: Price includes VAT
Nominal Impedance 8 Ohm
Minimum Impedance 7 Ohm
AES Power Handling (1) 30 W
Maximum Power Handling (2) 60 W
Minimum Crossover Frequency (3) 2 kHz
Sensitivity (1W/1m) (4) 108 dB
Frequency Range 1.5÷20 kHz
Voice Coil Diameter 25 mm (0.98 in)
Winding Material Al Former Material Kapton
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome
Winding Depth 1.7 mm (0.07 in)
Magnetic Gap Depth 2 mm (0.08 in)
Flux Density 1.7 T
Magnet Ferrite Ring
Re 6 Ohm
Phase Plug Design Radial
Exit Angle (5) 9° Conical
NET Air Volume filled by HF Driver 0.25 dm^3 (0.009 ft^3)
Throat Diameter 25.4 mm (1 in)
Overall Diameter 108 mm (4.02 in) 180°
Mounting Holes Diameter (2xM6) 76 mm (2.99 in)
Depth 55 mm (2.17 in)
Net Weight 830 g (1.8 lb)
Shipping Box 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in)
Shipping Weight 862 g (1.90 lb)


Please Choose:



  • 2 Units in Stock
