CIARE 1.26 NdTW 20 watt 8ohm Bullet TWEETER

£51.65

Quantity:

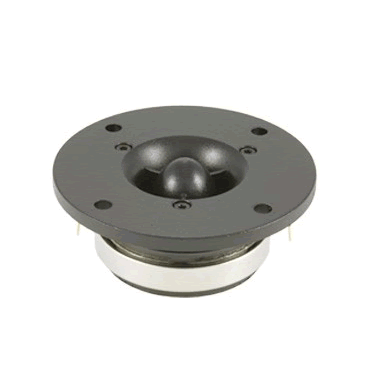

CIARE 1.26 NdTW 20 watt 8ohm HORN TWEETER

40 Watt Max Power
26 mm (1 in) voice coil, copper wire
Aluminium diaphram
Neodymium magnet assembly

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 1.26 NdTW

note: Price includes VAT

General Specifications
Throat Diameter 1'' - 25 mm
Nominal Impendance 8 Ohm
Voice coil resistance 6,5 Ohm ±0,4 Ohm
Minimum Impedance 6,5 Ohm ±0,7 Ohm
Power handling (AES) (*) 20 Watt
Max Power 40 Watt
Voice Coil Diameter 26 mm 1 in
S.P.L. (1w, 1m) 103 dB ±1,5 dB
Nominal Fs 2500 Hz ±200 Hz
Flux Density 2 T ±0,1 T
Crossover Frequency 2 kHz 12 dB/oct
Frequency Range 2 - 20 kHz


Weight 0,55 kg
Overall Diameter 90 mm
Overall Depth 35 mm
Mounting holes number 4
Mounting holes diameter 4,3 mm
Mounting bolt diameter 73,5 mm


  • 4 Units in Stock

Qty Discounts Off Price
1
£51.65
2-3
£50.10
4+
£48.55
