LEAN AUDIO No.1 for PA Loudspeakers, Guitar Speakers, Bass Guitar Speakers & HI FI speakers

18 Sound 15MB700 8ohm 400wattVery High Output MB Ferrite Driver

£176.11

Quantity:

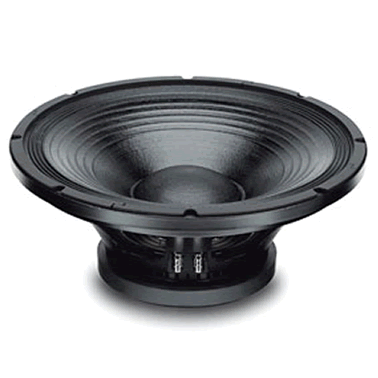

18 Sound 15MB700 8ohm 400watt Very High Output Mid/Bass Ferrite Driver

103 dB SPL 1W / 1m average sensitivity
75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
400 W AES power handling
Excellent transient response
Additional cone damping treatment
Improved heat dissipation via unique basket design
Suitable for compact two way, multiway and horn loaded midbass applications

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 15MB700

note: Price includes VAT

GENERAL SPECIFICATIONS

Nominal Diameter 380 mm (15 in)
Rated Impedance 8 Ohm
AES Power 400 W
Program Power 600 W
Peak Power 1200 W
Sensitivity 103 dB
Frequency Range 45 4300 Hz
Power Compression @-10dB 0,6 dB
Power Compression @-3dB 2,0 dB
Power Compression @Full Power 3,3 dB
Max Recomm. Frequency 3000 Hz
Recomm. Enclosure Volume 75 130 lt. (2,65 4,6 cuft)
Minimum Impedance 5,9 Ohm at 25C
Max Peak To Peak Excursion 23 mm (0,88 in)
Voice Coil Diameter 75 mm (3 in)
Voice Coil Winding Material aluminum
Suspension Multiroll, Polycotton
Cone Curvilinear ribbed, Treated paper


Please Choose:



  • 6 Units in Stock
