18 Sound 12NW530 8ohm 500watt Extended LF Neodymium Driver

£188.79

Quantity:

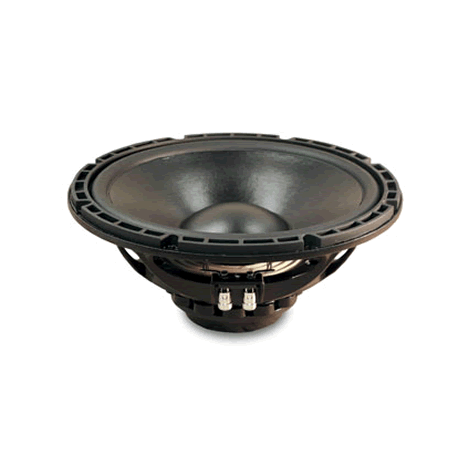

18 Sound 12NW530 Extended LF Neodymium Driver

96 dB SPL 1W / 1m average sensitivity
75 mm (3 in) ISV voice coil
500 W AES power handling
External neodymium magnet assembly
Double Silicon Spider (DSS) for improved excursion control and linearity
Single Demodulating Ring (SDR) for lower distortion
High excursion damped rubber roll surround
Specific for compact subwoofer usage

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 12NW530

note: Price includes VAT

GENERAL SPECIFICATIONS

Nominal Diameter
300mm (12 in)
Rated Impedance
8 Ohm
AES Power
500W
Program Power
800W
Peak Power
1600W
Sensitivity
96dB
Frequency Range
48 3200 Hz
Power Compression
@-10dB 0,9 dB
Power Compression
@-3dB 2,0 dB
Power Compression
@Full Power 3,1 dB
Max Recomm. Frequency
1300 Hz
Recomm. Enclosure Volume
30 80 lt. (1,06 2,83 cuft)
Minimum Impedance
6,3Ohm @ 25C
Max Peak To Peak Excursion
30 mm (1,2 in)
Voice Coil Diameter
75 mm (3 in)
Voice Coil
Winding Material copper
Suspension
Single Roll, Rubber
Cone
Curvilinear, Treated paper
