18 Sound 10M600 8ohm 400watt Very High Output MB Driver

£153.26

Quantity:

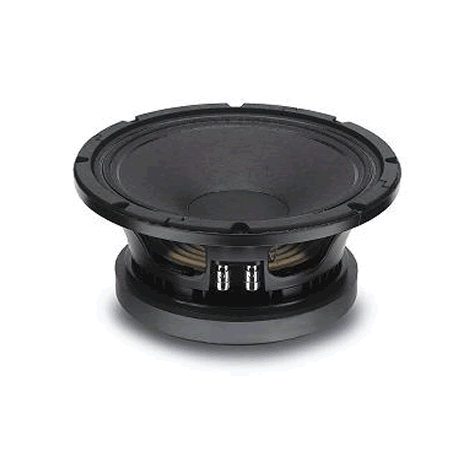

18 Sound 10M600 Very High Output MF Ferrite Driver

102 dB SPL 1W / 1m average sensitivity
75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
400 W AES power handling
Excellent transient response
Improved heat dissipation via unique basket design
Ideal for direct radiating or horn loaded midrange systems

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 10M600

note: Price includes VAT

GENERAL SPECIFICATIONS
Nominal Diameter 260 mm (10 in)
Rated Impedance 8 Ohm
AES Power 400 W
Program Power 500 W
Peak Power 1200 W
Sensitivity 102 dB
Frequency Range 80 5200 Hz
Power Compression @-10dB 0,5 dB
Power Compression @-3dB 1,6 dB
Power Compression @Full Power 2,3 dB
Max Recomm. Frequency 3000 Hz
Recomm. Enclosure Volume 5 30 lt. (0,18 1,09 cuft)
Minimum Impedance 6,4 Ohm at 25C
Max Peak To Peak Excursion 16 mm (0,63 in)
Voice Coil Diameter 75 mm (3 in)
Voice Coil Winding Material aluminum
Suspension M roll, polycotton
Cone Curvilinear, Paper


Please Choose:



  • 3 Units in Stock

Qty Discounts Off Price
1
£153.26
2-3
£148.66
4+
£144.06
* Discounts may vary based on options above
