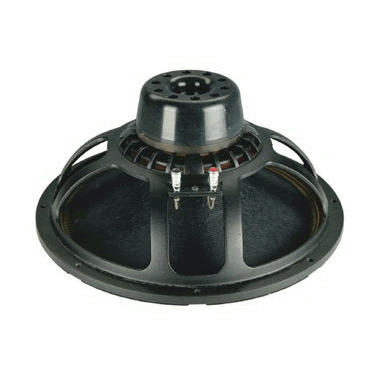

CIARE NDC 15-3 NEO 15" 400watt 8ohm PA and Bass Guitar speaker

800 Watt Max Power
75 mm (3 in) voice coil, aluminium wire
Neodymium magnet assembly
Weather protected membrane for outdoor use
Ventilated voice coil and magnet circuit for improved heat dissipation

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: NDC 15-3

note: Price includes VAT

General Specifications
Nominal Diameter 15" - 380 mm
Nominal Impendance 8 Ohm
Nominal Rdc 6 Ohm ±0,4 Ohm
Power handling (AES) (*) 400 Watt
Max Power 800 Watt
Voice Coil Diameter 75 mm 3 in
S.P.L. (1w, 1m) 98 dB ±1,5 dB
Nominal Fs 45 Hz ±5 Hz
Flux Density 1,3 T ±0,08 T
Frequency Range 20-3000 Hz
Sinusoidal Test Voltage 15 V

Thiele-small parameters
Qms 24,59
Qes 0,41
Qts 0,41
Fs 45,60 Hz
Re 5,84 Ohm
Mms 97,62 g
Cms 0,12 mm/N
Bl 19,90 T*m
Sd 830,00 cm2
Vas 120,61 liter
u0 2,67 %
XMax 7 mm
Le 0,78 mH
Rms 1,14 Kg/s
Efficiency Bandwidth 110,56


Weight 5,3 kg
Overall Diameter 388 mm
Overall Depth 178 mm
Baffle Cut Diameter 354 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 370 mm
