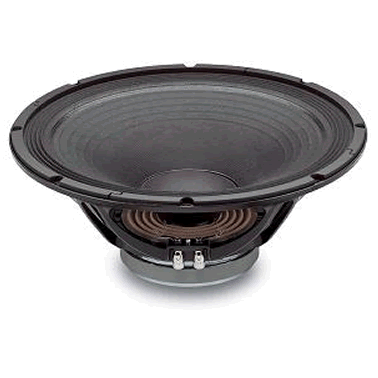

18 Sound 15W500 LF Ferrite Driver

100,5dB SPL 1W / 1m average sensitivity
65 mm (2,5 in) Interleaved Sandwich Voice coil (ISV)
350 W AES power handling
Excellent transient response and cone damping
Improved heat dissipation via unique basket design
Ideal for compact two way and multiway systems

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 15W500

note: Price includes VAT

GENERAL SPECIFICATIONS

Nominal Diameter 380 mm (15 in)
Rated Impedance 8 Ohm
AES Power 350 W
Program Power 500 W
Peak Power 1000 W
Sensitivity 100,5 dB
Frequency Range 50 ÷ 4500 Hz
Power Compression @-10dB 0,7 dB
Power Compression @-3dB 2,5 dB
Power Compression @Full Power 4,0 dB
Max Recomm. Frequency 3000 Hz
Recomm. Enclosure Volume 80 ÷ 200 lt. (2,47 ÷ 5,3 cuft)
Minimum Impedance 6 Ohm at 25°C
Max Peak To Peak Excursion 23 mm (0,88 in)
Voice Coil Diameter 64 mm (2,5 in)
Voice Coil Winding Material aluminum
Suspension Multiroll, Polycotton
Cone Curvilinear ribbed, Paper
