18 Sound XR1064 1" 60 40 Ali Constant Coverage rotatable HF horn

Description

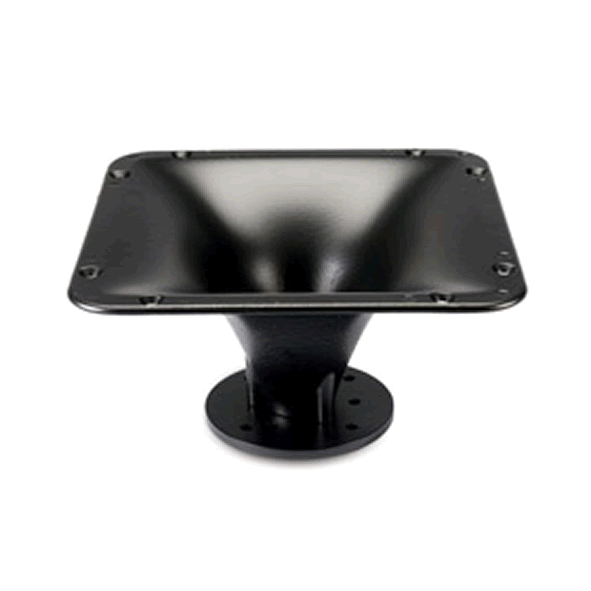

18 Sound XT1064 1" Die Cast Constant Coverage HF Horn

1 inch throat entry
Aluminum construction for excellent heat transfer
Uniform on-axis and off-axis frequency response
60° x 40° horizontal and vertical constant coverage
Very low distortion at high sound pressure
Rotatable structure.

Designed & manufactured in Italy and provided exclusively on-line by Lean Business, this Eighteen Sound product comes complete wth a 1 year warranty.

See specification tab for technical details or Click HERE for full technical details. (opens in new window)

Model: 18 Sound XR1064

note: Price includes VAT

Specification

Throat Diameter 25,4 mm (1 in)
Horizontal Coverage (-6dB) 60° (20 ÷ -10) average range (1,6kHz - 12,5kHz)
Vertical Coverage (-6 dB) 40° (40 ÷ 0) average range (1,6kHz - 12,5kHz)
Directivity Index 11dB (1.8 ÷ -2,6) average range (1,6kHz - 12,5kHz)
Usable Frequency Range Above 800 Hz
Recomm. Cross.Frequency 1200 Hz or more
Sensitivity (on axis) 110 dB
Frequency Range 800 Hz - 18KHz
Material Low pressure injected aluminum

Mouth Height 210 mm (8,3 in)
Mouth Width 210 mm (8,3in)
Depth 110 mm (4,3 in)
Mouth Mounting Dimensions 8 ø 6 holes
Driver mounting specs 3 M5 holes on ø 57mm (2.24in) - 4 M6 holes on ø 76mm (3in)
Net weight 1,5 Kg (3,3 lb)
