WGS Retro 10 10" 60 watt Guitar Speaker 8ohm

Description

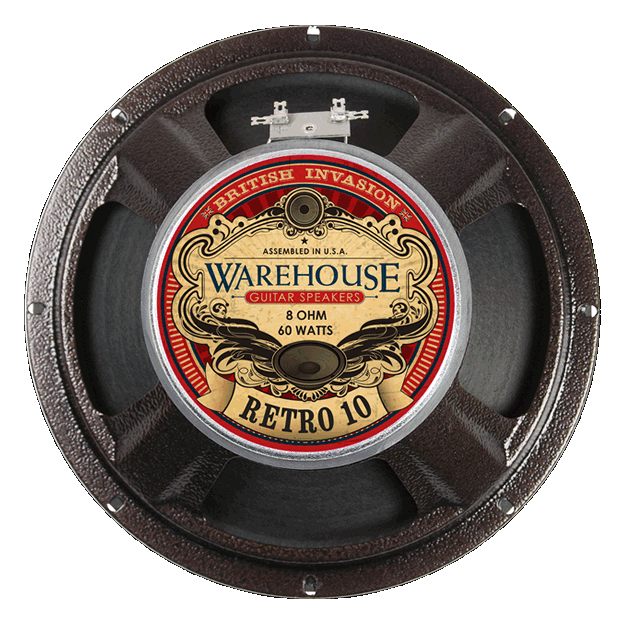

WGS RETRO 10" 8ohm Guitar Speaker

With the Retro 10, Warehouse Guitar Speakers set out to build something with all the qualities guitarists enjoy about their Retro 30 in a 10” speaker.
The Retro 10 has got a tight bottom end, an articulate top end, and a nice low-midrange growl. It can be thought of as a distant cousin of the Green Beret 10, but with more low end, slightly more top end, and a shift in midrange characteristics.

This is the 8ohm version

Price includes VAT.

Specification

Nominal diameter 10", 250mm
Power Rating 60w
Nominal impedance 8ohm
Chassis type Pressed Steel
Magnet type Ferrite
Unit Weight 3.18kg


Thielle-Small Parameters
Resonant Frequency (Fs) 115.58 Hz
DC Resistance (Re) 6.27 Ohm
Coil Inductance (Le) 0.17 mH
Mechanical Q (Qms) 6.72
Electromagnetic Q (Qes) 0.66
Total Q (Qts) 0.6
Compliance Equiv. Vol. (Vas) 16.26 cu ft
Mech. Compliance of Susp. (Cms) 0.11 mm/N
BL Product (BL) 10.99 T-M
Diaphragm Mass Inc. Airload (Mms) 17.39 grams
Surface Area of Cone (Sd) 324.29 cm squared
Sound Pressure Level (spl) 100.62 db


Product details

• 4 Units in Stock
