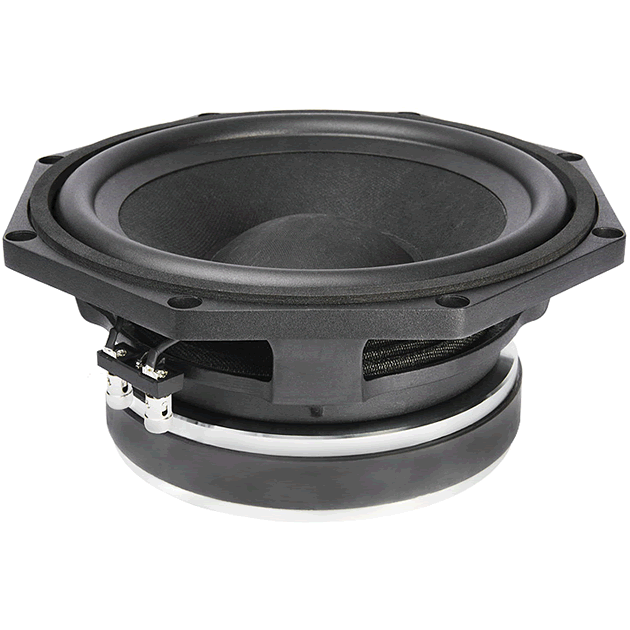

FaitalPRO 8RS250 8ohm 8" 200 watt PA Speaker

Description

FaitalPRO 20RS200 8ohm 10" 200 watt PA Speaker

• Nominal Diameter - 200 mm (8 in)
• Overall Diameter - 223.7/207.9 mm (8.81/8.18 in)
• Bolt Circle Diameter - 210 mm (8.27 in)
• Baffle Cutout Diameter - 183 mm (7.20 in)
• Depth - 108 mm (4.25 in)
• Flange and Gasket Thickness - 15.3 mm (0.60 in)
• Net Weight - 4.4 Kg (9.7 lb)
• Shipping Box(Single Carton Box) - 235 x 235 x 155 mm (9.3 x 9.3 x 6.1 in)
• Shipping Weight - 4.7 Kg (10.4 lb)

Technical Parameters

• Nominal Impedance - 8 Ohm
• Minimum Impedance - 7 Ohm
• AES Power Handling (1) - 200 W
• Maximum Power Handling (2) - 400 W
• Sensitivity (1W/1m) - 93 dB
• Frequency Range - 60-6300 Hz
• Voice Coil Diameter - 52 mm (2 in)
• Winding Material - Al
• Former Material - Glass Fiber
• Winding Depth - 16.5 mm (0.65 in)
• Magnetic Gap Depth - 8 mm (0.31 in)
• Flux Density - 1.3 T
• Magnet - Ferrite Ring
• Basket Material - Aluminum
• Demodulation - Aluminum Ring
• Cone Surround (3) - Half Roll
• NET Air Volume filled by Loudspeaker - 1.17 l (0.041 ft^3)
• Spider Profile - 1x variable height waves

Thiele and small parameters

• Fs - 56 Hz
• Re - 5.7 Ohm
• Qes - 0.34
• Qms - 5.7
• Qts - 0.32
• Vas - 16 l (0.57 ft^3)
• Sd - 207 cm^2 (32.09 in^2)
• Xmax (4) - 6.92 mm
• Xdamage (5) - 15.7 mm
• Mms - 30.6 g
• Bl - 13.5 N/A
• Le - 0.35 mH
• Mmd - 28.9 g
• Cms - 0.26 mm/N
• Rms - 1.89 Kg/s
• Eta Zero - 0.81 %
• EBP - 165 Hz
