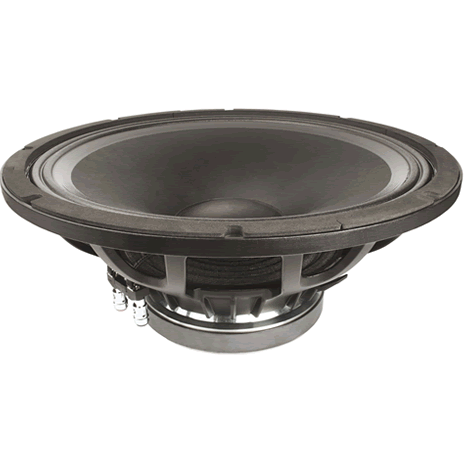

Faital PRO 15FH510 8ohm 15" 500watt PA Speaker

Description

Faital Pro 15FH510 15" 600 W 8 Ohm Ferrite Speaker
15" Loudspeaker ideal fro PA, Bass Reflex, Bass Guitar, speaker plans and cabinets.

•Nominal Diameter 15", 380 mm
•Overall Diameter 15.47", 393 mm
•Bolt Circle Diameter 14.72", 374 mm
•Baffle Cutout Diameter 13.94", 354 mm
•Depth 7.09", 180 mm
•Flange and Gasket Thickness 0.52", 13.1 mm
•Net Weight 8.4 Kg (18.52 lb)

Suitable for loading in two and three way full range cabinets and compact subwoofer bass reflex and horn loaded speaker plans.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: FaitalPRO 15FH510

note: Price includes VAT

Specification

Technical Parameters
•Minimum Impedance 6.3 Ohm
•Nominal Impedance 8 Ohm
•Nominal Power Handling*** 500 W
•Maximum Power Handling**** 1,000 W
•Sensitivity (1W/1m) 98 dB
•Frequency Range 35 - 3150 Hz
•Voice Coil Diameter 3", 77 mm
•Winding Material Copper
•Former Material Glass Fiber
•Winding Depth 0.87", 22 mm
•Magnetic Gap Depth 0.41", 10.5 mm
•Flux Density 1.15 T

Thiele & Small

•Resonant Frequency (fs) 35 Hz
•DC Resistance (Re) 5.1 Ohm
•BL Product (BL) 21.3 N/A
•Diaphragm Mass inc. Airload (Mms) 108 grams
•Mechanical Compliance of Suspension (Cms) 0.16 mm/N
•Rms 1.9 Kg/s
•Electromagnetic Q (Qes) 0.3
•Mechanical Q (Qms) 13.4
•Total Q (Qts) 0.3
•Compliance Equivalent Volume (Vas) 6.19 ft³, 175.3 dm³
•Surface Area of Cone (Sd) 136.4"², 880 cm²
•Maximum Linear Excursion (Xmax)* 9.35 mm
•Xdamage** 20 mm
•Coil Inductance (Le) 1.4 mH
•Diaphragm mass (Mmd) 93 g
•Eta Zero 3.2 %
