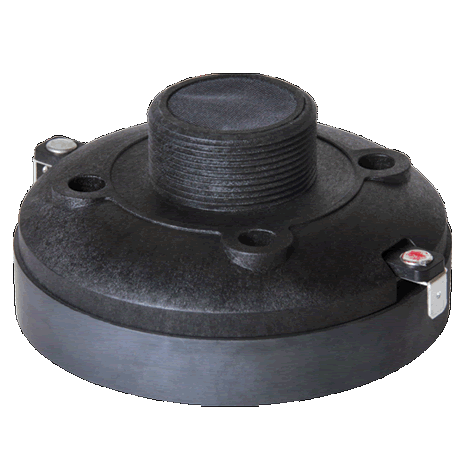

Celestion CDX1-1010 8 Ohm 15W 1 inch Screw-In Compression Driver



Celestion CDX1-1010 8 ohm 15W 1 inch Screw-In Compression Driver

Very lightweight, low-profile ferrite magnet compression driver
15W RMS (AES standard) power handling and 107dB sensitivity, 1500-20,000Hz frequency range
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
Ideal for entry-level two-way and three-way sound reinforcement cabinets
An ideal replacement for PA speakers including Yamaha etc

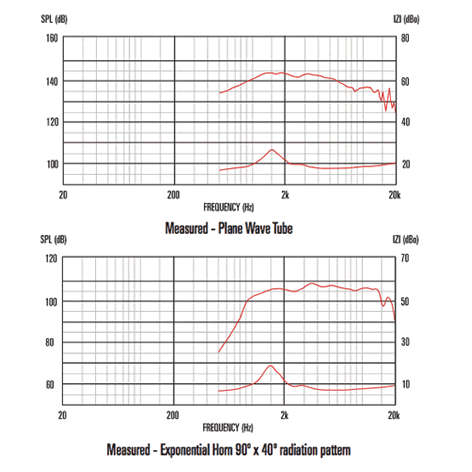

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: CDX1-1010

note: Price includes VAT

General Specifications
Power rating 15W RMS
Nominal impedance 8 Ohms
Frequency range 1500-20,000Hz
Sensitivity 107dB
Recommended min. crossover (12dB/oct) 2200Hz
Voice coil diameter 25mm/1.0in
Voice coil material Copper clad aluminium
Magnet type Ferrite
Diaphragm material PETP film
Surround material PETP film

Mounting Information:
Overall width 90mm/3.54in
Overall depth 52.8mm/2.08in
Fitting Screw (35mm/1.38in diameter)
Throat exit 25mm/1.0in
Unit weight 0.83kg/1.8lb

Please Choose:

  • 2 Units in Stock
