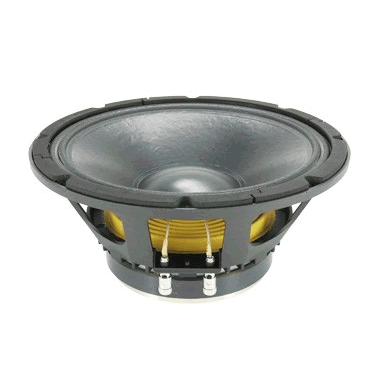

CIARE 12.75 W1 12" 300 watt 8ohm PA Speaker

£114.78

Sold Out

To be notified when this product is back in stock please click here.

CIARE 12.75 W1 12" 300 watt 8ohm Loudspeaker

600 Watt Max Power
75 mm (3 in) voice coil, copper wire
Ferrite magnet assembly
Interleaved sandwich voice coil

Designed & manufactured in Italy.


See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 12.75 W1
note: Price includes VAT

General Specifications
Nominal Diameter 12" - 320 mm
Nominal Impendance 8 Ohm
Nominal Rdc 5,8 Ohm ±0,4 Ohm
Power handling (AES) (*) 300 Watt
Max Power 600 Watt
Voice Coil Diameter 75 mm 3,00 in
S.P.L. (1w, 1m) 98 dB ±1,5 dB
Nominal Fs 45 Hz ±5 Hz
Flux Density 1,15 T ±0,08 T
Frequency Range 45-2000 Hz

Thiele-small parameters
Qms 13,06
Qes 0,25
Qts 0,24
Fs 46,32 Hz
Re 5,81 Ohm
Mms 58,66 g
Cms 0,0002013 m/N
Bl 19,99 Wb/m
Sd 0,053502 m2
Vas 0,08093 m3
u0 3,09 %
XMax 3,5 mm
Le 1,2 mH


Weight 7,4 kg
Overall Diameter 315 mm
Overall Depth 146 mm
Baffle Cut Diameter 282 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 295 mm



  • 0 Units in Stock

Qty Discounts Off Price
1
£114.78
2-3
£111.34
4+
£107.89
