Palmer PGA01 Triline Guitar Routing Box

PRICE MATCH AVAILABLE!

PGA 01, TRILINE - The Palmer Triline basically routes guitar signals to different amplifiers and functions as an active A/B/Y box. The Palmer Triline's universal design makes it possible to utilize various options:

1. A single guitar can be routed to either amplifierAor B or to both.

2. Two guitars can be routed to different systems, e.g. an electric guitar to a guitar amplifier, and an electro-acoustic guitar to a PAsystem via an integral DI box.

3. Using an additional device (E-Frog), one guitar can switch between two amplifier heads.

However, both amplifiers use only one speaker cabinet, i.e. the output of the amplifier in use is routed to the speaker cabinet. A load box prevents damage to the amplifier which is not in use. The routing is done without any audible delay or clicking noise. The outputs to the amplifiers are transformer isolated to prevent ground loops and humming. You can match the channel gain using the trim potentiometers. There is a special output for connecting up a tuning device. During tuning, the amplifier outputs can be muted.

Model: TRILINE
note: Price includes VAT

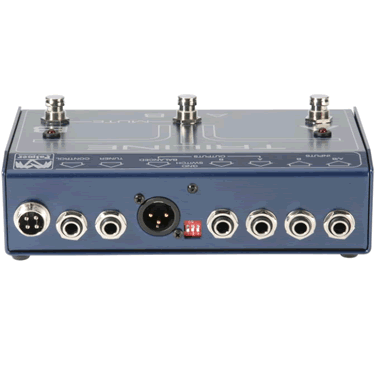

Inputs: 2 x¼” Jack A/B (guitar or other instrument)

Outputs: (floating ground), Channel B with additional balanced XLR/m for connection to mixing console mic input, can be muted.

Output tuner: 1 , ”Control” output for “E-Frog” (¼” Jack). External power adaptor with 4 pin screw connector

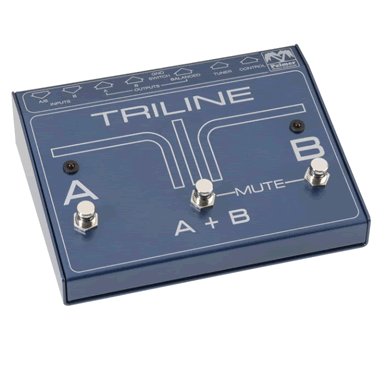

3 foot switches: ChannelA, Channel A+B, Channel B. 3 Dip switches for ground lift 2 x ¼” Jack x¼” Jack
