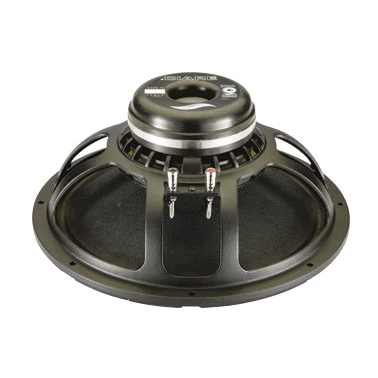

CIARE NDH 15-4 15" Neo PA Speaker 8ohm

1600 Watt Max Power
100 mm (4 in) voice coil, aluminium wire
Double spider for improved control and linearity
Neodymium magnet assembly
Weather protected membrane for outdoor use.
Incredibly Strong Mids & Bass
Great For All Bass Applications

Designed & manufactured in Italy.

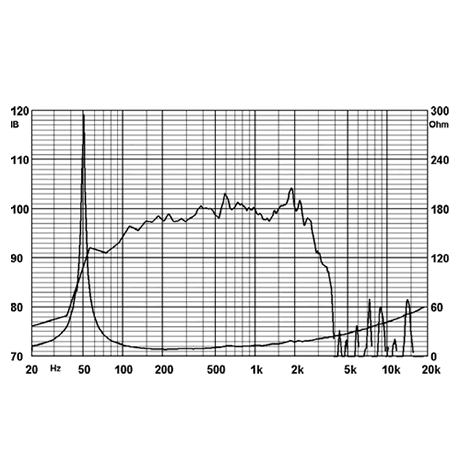

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: NDH 15-4

note: Price includes VAT

General Specifications
Nominal Diameter 15" - 380 mm
Nominal Impendance 8 Ohm
Nominal Rdc 6 Ohm ±0,4 Ohm
Power handling (AES) (*) 800 Watt
Max Power 1600 Watt
Voice Coil Diameter 100 mm 4,00 in
S.P.L. (1w, 1m) 99,0 dB ±1,5 dB
Nominal Fs 49 Hz ±5 Hz
Flux Density 1,4 T ±0,08 T
Frequency Range 40-2000 Hz
Sinusoidal Test Voltage 18 V

Thiele-small parameters
Qms 11,81
Qes 0,31
Qts 0,31
Fs 48,60 Hz
Re 6,06 Ohm
Mms 107,00 g
Cms 0,19 mm/N
Bl 25,09 T*m
Sd 830,00 cm2
Vas 96,87 liter
u0 3,41 %
XMax 8 mm
Le 0,71 mH
Rms 2,77 Kg/s
Efficiency Bandwidth 154,52

Weight 6 kg
Overall Diameter 388 mm
Overall Depth 175 mm
Baffle Cut Diameter 354 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 370 mm
