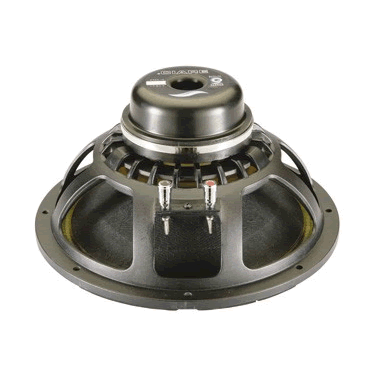

CIARE NDH 12-3 NEO 12" 400watt 8ohm PA and Bass Guitar speaker

800 Watt Max Power
75 mm (3 in) voice coil, aluminium wire
Neodymium magnet assembly
Weather protected membrane for outdoor use
Ventilated voice coil and magnet circuit for improved heat dissipation
High efficiency 100dB
Super Clean Midrange
Smooth& Flat Sounding 12" Midrange Speaker

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: NDH12-3

note: Price includes VAT

General Specifications
Nominal Diameter 12" - 320 mm
Nominal Impendance 8,00 Ohm
Nominal Rdc 5,4 Ohm ±0,4 Ohm
Power handling (AES) (*) 400 Watt
Max Power 800 Watt
Voice Coil Diameter 75 mm 3,00 in
S.P.L. (1w, 1m) 100 dB ±1,5 dB
Nominal Fs 55 Hz ±6 Hz
Flux Density 1,5 T ±0,08 T
Frequency Range 20-3000 Hz
Sinusoidal Test Voltage 15 V

Thiele-small parameters
Qms 11,36
Qes 0,23
Qts 0,22
Fs 55,10 Hz
Re 6,10 Ohm
Mms 49,50 g
Cms 0,17 mm/N
Bl 21,36 T*m
Sd 530,00 cm2
Vas 66,42 liter
u0 4,68 %
XMax 6,5 mm
Le 0,54 mH
Rms 1,51 Kg/s
Efficiency Bandwidth 240,49


Weight 5,0 kg
Overall Diameter 315 mm
Overall Depth 155 mm
Baffle Cut Diameter 282 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 295 mm
