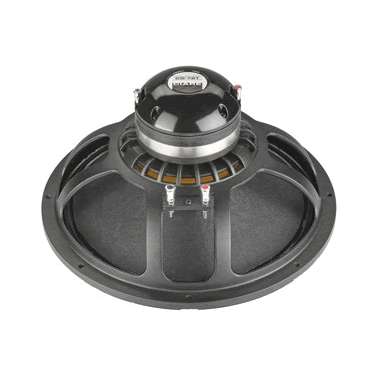

CIARE NDCX 15-2 Neo Coaxial combining 15" PA Speaker + 1.4" Comp driver

800 Watt Max Power (LF)
200 Watt Max Power (HF)
75 mm (3 in) voice coil, copper wire (LF)
72 mm (2,83 in) voice coil, aluminium wire (HF)
Interleaved sandwich voice coil (LF)
Titanium diaphram (HF)
Neodymium magnet assembly
Copper short, cap for extended frequency responce (HF)
Weather protected membrane for outdoor use (LF)

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: NDCX 15-2

note: Price includes VAT

General Specifications
Nominal Diameter 15" - 380 mm 1,4" - 35,6 mm
Nominal Impendance 8 Ohm 8 Ohm
Nominal Rdc 5,5 Ohm 5,7 Ohm±0,4 Ohm
Power handling (AES) (*) 400 Watt 110 Watt
Max Power 800 Watt 220 Watt
Voice Coil Diameter 75 mm 72 mm3,00/2,83 in
S.P.L. (1w, 1m) 99 dB 109 dB±1,5 dB
Nominal Fs 48 Hz 550 Hz±5/100 Hz
Flux Density 1,27 T 2 T±0,08 T
Frequency Range 20-2000 Hz 1200-20000 Hz
Sinusoidal Test Voltage 15 V 3 V

Thiele-small parameters
Qms 15,07
Qes 0,44
Qts 0,43
Fs 48,30 Hz
Re 5,58 Ohm
Mms 87,11 g
Cms 0,12 mm/N
Bl 18,28 T*m
Sd 830,00 cm2
Vas 120,471 liter
u0 2,96 %
XMax 7 mm
Le 0,71 mH
Rms 1,75 Kg/s
Efficiency Bandwidth 109,42

Weight 5.3 kg
Overall Diameter 388 mm
Overall Depth 211 mm
Baffle Cut Diameter 354 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 370 mm

Below is CIARE cabinet design suggestion please click here for the full design and specifications PDF (opens a new window)
