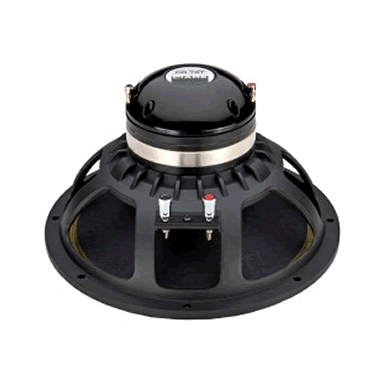

CIARE NDCX 12-1.4 Neo Coaxial combining 12" PA Speaker + 1.4" Comp driver

700 Watt Max Power (LF)
220 Watt Max Power (HF)
75 mm (3 in) voice coil, aluminium wire (LF)
72 mm (2,83 in) voice coil, aluminium wire (HF)
Interleaved sandwich voice coil (LF)
Titanium diaphragm (HF)
Neodymium magnet assembly
Copper short, cap for extended frequency responce (HF)
6.0mm Xmax
Nice Clarity That Is Smooth & Warm Sounding!
Our Smoothest Sounding 12" Coaxial Speaker

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: NDCX 12-1.4

note: Price includes VAT

General Specifications
Nominal Diameter 12" - 320 mm 1,4" - 35,6 mm
Nominal Impendance 8 Ohm 8 Ohm
Nominal Rdc 5,6 Ohm 5,7 Ohm±0,4 Ohm
Power handling (AES) (*) 350 Watt 110 Watt
Max Power 700 Watt 220 Watt
Voice Coil Diameter 75 mm 72 mm3,00/2,83 in
S.P.L. (1w, 1m) 99 dB 109 dB±1,5 dB
Nominal Fs 60 Hz 450 Hz±7/50 Hz
Flux Density 1,25 T 2 T±0,08 T
Frequency Range 60-3000 Hz 1200-20000 Hz
Sinusoidal Test Voltage 15 V 3 V

Thiele-small parameters
Qms 11,68
Qes 0,38
Qts 0,37
Fs 60,40 Hz
Re 5,64 Ohm
Mms 49,04 g
Cms 0,14 mm/N
Bl 16,69 T*m
Sd 551,00 cm2
Vas 60,31 liter
u0 3,40 %
XMax 6 mm
Le 0,66 mH
Rms 1,59 Kg/s
Efficiency Bandwidth 160,29

Weight 5.3 kg
Overall Diameter 314 mm
Overall Depth 178 mm
Baffle Cut Diameter 282 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 296 mm
