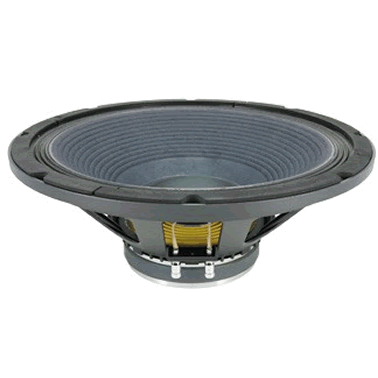

CIARE 18.75 W 18" 400 watt 8ohm PA Loudspeaker

800 Watt Max Power
75 mm (3 in) voice coil, copper wire
Ferrite magnet assembly.
Designed for both front loaded and horn loaded speaker systems

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18.75 W

note: Price includes VAT

General Specifications
Nominal Diameter 18" - 450 mm
Nominal Impendance 8 Ohm
Nominal Rdc 5,2 Ohm ±0,4 Ohm
Power handling (AES) (*) 400 Watt
Max Power 800 Watt
Voice Coil Diameter 75 mm 3,00 in
S.P.L. (1w, 1m) 100 dB ±1,5 dB
Nominal Fs 35 Hz ±4 Hz
Flux Density 1,35 T ±0,08 T
Frequency Range 40-2000 Hz

Thiele-small parameters
Qms 14,99
Qes 0,31
Qts 0,30
Fs 35,56 Hz
Re 5,2 Ohm
Mms 119,2 g
Cms 0,00016813 m/N
Bl 21,24 Wb/m
Sd 0,116416 m2
Vas 0,32003 m3
u0 4,50 %
XMax 4,25 mm
Le 1,41 mH



Weight 9.2 kg
Overall Diameter 460 mm
Overall Depth 178 mm
Baffle Cut Diameter 416 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 440 mm

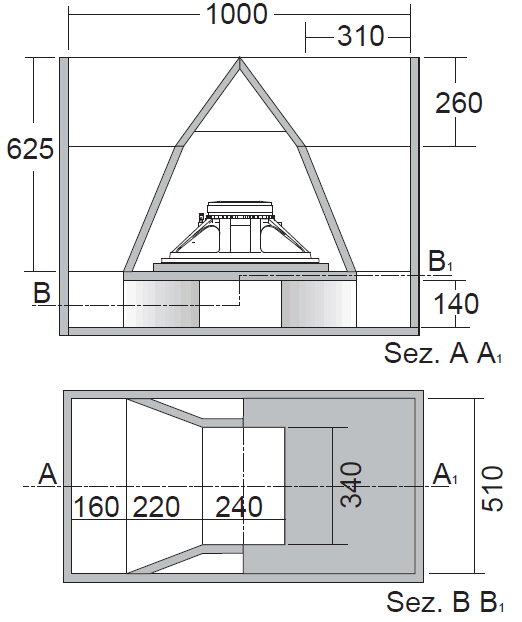

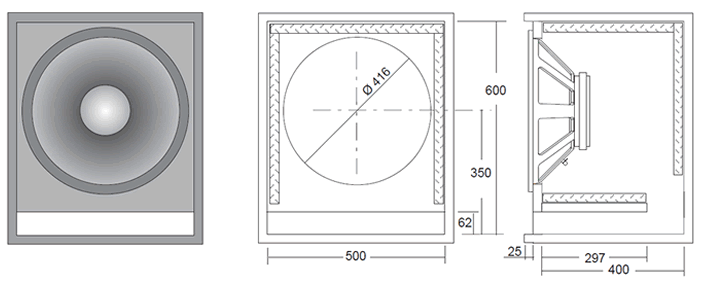

Below is a Ciare suggested cabinet design please click here for the full design and specifications PDF (opens a new window)
