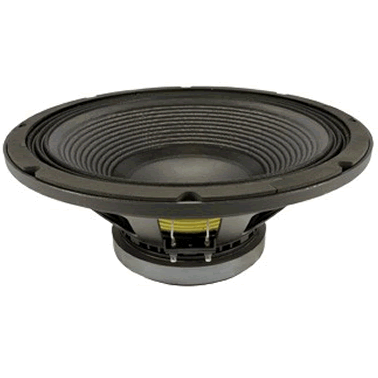

CIARE 18.00 SW1 is a powerful 18" SUBWOOFER that handle 1,000 Watt AES & 2,000 Watts PROGRAM

Works well in sealed & ported bass relfex enclosures.
2000 Watt Max Power
100 mm (4 in) voice coil, copper wire
High 12.5mm Xmax for strong clean bass down to 35Htz
Double spider for improved control and linearity
Ferrite magnet assembly
Interleaved sandwich voice coil
Weather protected membrane for outdoor use
Ventilated magnet circuit for improved heat dissipation

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18.00 SW 1

note: Price includes VAT

General Specifications
Nominal Diameter 18" - 450 mm
Nominal Impendance 8 Ohm
Nominal Rdc 5,8 Ohm ±0,4 Ohm
Power handling (AES) (*) 1000 Watt
Max Power 2000 Watt
Voice Coil Diameter 100 mm 4,00 in
S.P.L. (1w, 1m) 96 dB ±1,5 dB
Nominal Fs 40 Hz ±5 Hz
Flux Density 1,2 T ±0,08 T
Frequency Range 35-350 Hz
Sinusoidal Test Voltage 15 V

Thiele-small parameters
Qms 13,83
Qes 0,60
Qts 0,57
Fs 39,60 Hz
Re 5,98 Ohm
Mms 199,20 g
Cms 0,08 mm/N
Bl 22,23 T*m
Sd 1164,00 cm2
Vas 154,14 liter
u0 1,54 %
XMax 12,5 mm
Le 0,9 mH
Rms 3,58 Kg/s
Efficiency Bandwidth 66,03



Weight 12.9 kg
Overall Diameter 460 mm
Overall Depth 182 mm
Baffle Cut Diameter 416 mm
Mounting holes number 8
Mounting holes diameter 7 mm
Mounting bolt diameter 440 mm
