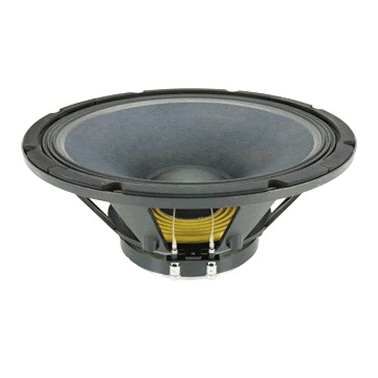

CIARE 15.75 W 15" 400 watt 8ohm PA and Bass Guitar speaker

800 Watt Max Power
75 mm (3 in) voice coil, copper wire
Ferrite magnet assembly

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 15.75 W

note: Price includes VAT

General Specifications
Nominal Diameter 15" - 380 mm
Nominal Impendance 8 Ohm
Nominal Rdc 5,5 Ohm ±0,4 Ohm
Power handling (AES) (*) 400 Watt
Max Power 800 Watt
Voice Coil Diameter 75 mm 3,00 in
S.P.L. (1w, 1m) 99 dB ±1,5 dB
Nominal Fs 45 Hz ±5 Hz
Flux Density 1,15 T ±0,08 T
Frequency Range 40-3000 Hz

Thiele-small parameters
Qms 15,45
Qes 0,33
Qts 0,32
Fs 45,12 Hz
Re 5,5 Ohm
Mms 86,79 g
Cms 0,00014337 m/N
Bl 20,32 Wb/m
Sd 0,082958 m2
Vas 0,13858 m3
u0 3,73 %
XMax 4,25 mm
Le 1,36 mH

Weight 7,8 kg
Overall Diameter 388 mm
Overall Depth 165 mm
Baffle Cut Diameter 354 mm
Mounting holes number 8
Mounting holes diameter 6,5 mm
Mounting bolt diameter 368 mm



Below is a CIARE cabinet design suggestion please click here for the full design and specifications PDF (opens a new window)
