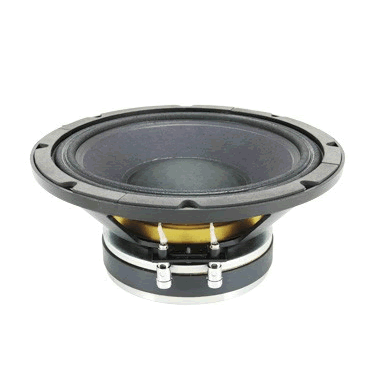

CIARE 10.75 W 10" 400 watt 8ohm Loudspeaker

800 Watt Max Power
75 mm (3 in) voice coil, copper wire
Ferrite magnet assembly

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 10.75 W

note: Price includes VAT

General Specifications
Nominal Diameter 10" - 250 mm
Nominal Impendance 8 Ohm
Nominal Rdc 5,4 Ohm ±0,4 Ohm
Power handling (AES) (*) 400 Watt
Max Power 800 Watt
Voice Coil Diameter 75 mm 3,00 in
S.P.L. (1w, 1m) 96 dB ±1,5 dB
Nominal Fs 58 Hz ±6 Hz
Flux Density 1,05 T ±0,08 T
Frequency Range 55-3000 Hz

Thiele-small parameters
Qms 3,2
Qes 0,33
Qts 0,30
Fs 57,25 Hz
Re 5,21 Ohm
Mms 44,93 g
Cms 0,000172 m/N
Bl 15,86 Wb/m
Sd 0,035299 m2
Vas 0,03067 m3
u0 1,65 %
XMax 3,5 mm
Le 0,94 mH

Weight 5 kg
Overall Diameter 266 mm
Overall Depth 125 mm
Baffle Cut Diameter 235 mm
Mounting holes number 8
Mounting holes diameter 5 mm
Mounting bolt diameter 253 mm
