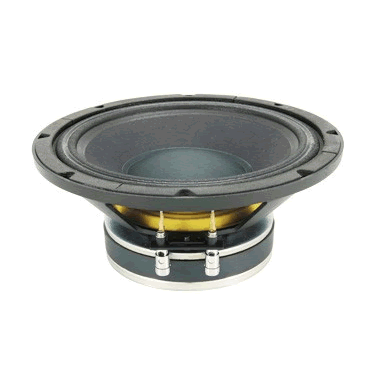

CIARE 10.64 W1 10" 300 watt 8ohm PA and Bass Guitar Speaker

600 Watt Max Power
64 mm (2,5 in) voice coil, aluminium wire
Ferrite magnet assembly
4mm Xmax great for High quality Bass Guitar

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 10.64 W1

note: Price includes VAT

General Specifications
Nominal Diameter 10" - 250 mm
Nominal Impendance 8 Ohm
Nominal Rdc 5,7 Ohm ±0,4 Ohm
Power handling (AES) (*) 300 Watt
Max Power 600 Watt
Voice Coil Diameter 64 mm 2,50 in
S.P.L. (1w, 1m) 97 dB ±1,5 dB
Nominal Fs 51 Hz ±7 Hz
Flux Density 1,15 T ±0,08 T
Frequency Range 50-3000 Hz

Thiele-small parameters
Qms 12,29
Qes 0,31
Qts 0,30
Fs 50,87 Hz
Re 5,75 Ohm
Mms 36,44 g
Cms 0,00026863 m/N
Bl 14,73 Wb/m
Sd 0,035299 m2
Vas 0,04701 m3
u0 1,92 %
XMax 4 mm
Le 1,2 mH


Weight 4,9 kg
Overall Diameter 266 mm
Overall Depth 113 mm
Baffle Cut Diameter 235 mm
Mounting holes number 4
Mounting holes diameter 5 mm
Mounting bolt diameter 253 mm
