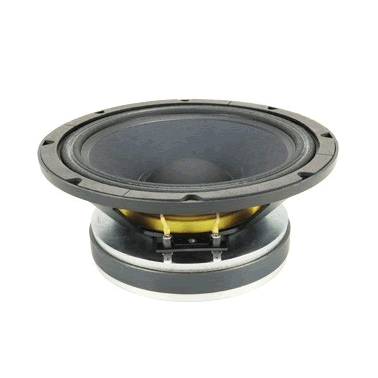

CIARE 10.64 MB 10" 8ohm MID BASS Speaker

600 Watt Max Power
64 mm (2,5 in) voice coil, aluminium wire
Ferrite magnet assembly
High SPL 100dB

Designed & manufactured in Italy.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 10.64 MB

note: Price includes VAT

General Specifications
Nominal Diameter 10" - 250 mm
Nominal Impendance 8 Ohm
Nominal Rdc 5,4 Ohm ±0,4 Ohm
Power handling (AES) (*) 300 Watt
Max Power 600 Watt
Voice Coil Diameter 64 mm 2,50 in
S.P.L. (1w, 1m) 100 dB ±1,5 dB
Nominal Fs 65 Hz ±7 Hz
Flux Density 1,5 T ±0,08 T
Frequency Range 150-5000 Hz

Thiele-small parameters
Qms 12,45
Qes 0,26
Qts 0,25
Fs 68,60 Hz
Re 5,43 Ohm
Mms 31,94 g
Cms 0,0001684 m/N
Bl 17,05 Wb/m
Sd 0,035633 m2
Vas 0,03005 m3
u0 3,59 %
XMax 2,5 mm
Le 0,62 mH


Weight 7,2 kg
Overall Diameter 266 mm
Overall Depth 112 mm
Baffle Cut Diameter 235 mm
Mounting holes number 8
Mounting holes diameter 5 mm
Mounting bolt diameter 253 mm

Below is a CIARE cabinet design suggestion please click here for the full design and specifications PDF (opens a new window)
