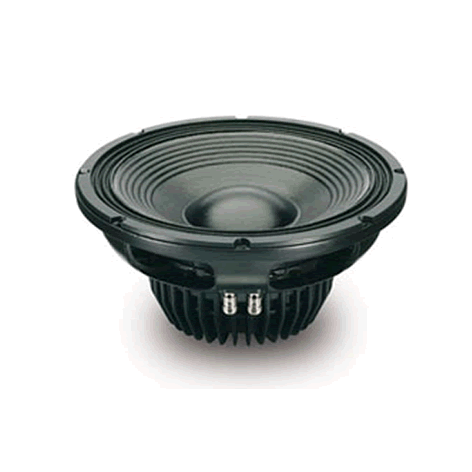

18 Sound 12NLW9300 LF Neodymium Driver

97 dB SPL 1W / 1m average sensitivity
100 mm (4in) Interleaved Sandwich Voice coil (ISV)
800W AES power handling
External neodymium magnet assembly
Double Demodulating Rings (DDR) for lower distortion and improved heat dissipation
Weather protected cone and plates for outdoor usage
Improved dissipation via onboard heatsink
Recommended for two way and multiway systems

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 12NLW9300

note: Price includes VAT

GENERAL SPECIFICATIONS

Nominal Diameter 300mm (12 in)
Rated Impedance 8 ohms
AES Power 800W
Program Power 1200W
Peak Power 2400W
Sensitivity 97 dB
Frequency Range 45 - 3200 Hz
Power Compression @ -10 dB (5) 0,8 dB
Power Compression @ -3 dB 2,5 dB
Power Compression @ Full Power 3,1 dB
Max Recomm. Frequency 1500 Hz
Recomm. Enclosure Volume 30 ÷ 70 lt. (1,06 ÷ 2,47 cuft)
Minimum Impedance 6,2 ohms at 25°C
Max Peak To Peak Excursion 37 mm (1,46 in)
Voice Coil Diameter 100 mm (3,94 in)
Voice Coil Winding Material aluminum
Suspension Triple Roll, Polycotton
Cone Straight ribbed, paper
