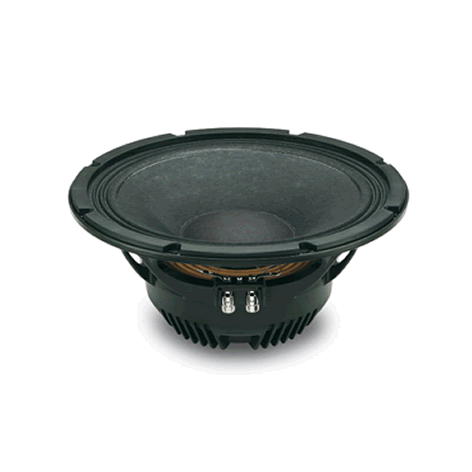

18 Sound 12ND710 Very High Output MB Neodymium Driver

101 dB SPL 1W / 1m average sensitivity
75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
450 W AES power handling
Neodymium magnet assembly
Double Demodulating Rings (DDR) for lower distortion and reduced inductance
Humidity resistant cone
Suitable for midbass frequency reproduction

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 12ND710

note: Price includes VAT

GENERAL SPECIFICATIONS

Nominal Diameter 300 mm (12 in)
Rated Impedance 8 Ohm
AES Power 450W
Program Power 700W
Peak Power 1400W
Sensitivity 101 dB
Frequency Range 60 ÷ 6000Hz
Power Compression @-10dB (5) 0,6 dB
Power Compression @-3dB 2 dB
Power Compression @Full Power 2,8 dB
Max Recomm. Frequency 2000 Hz
Recomm.Enclosure Volume 10 ÷ 80 lt. (0,35÷ 1.41 cuft)
Minimum Impedance 5,7 Ohm at 25°C
Max Peak To Peak Excursion 22 mm (0,9 in)
Voice Coil Diameter 75 mm (3 in)
Voice Coil Winding Material aluminum
Suspension M-roll, Polycotton
Cone Curvilinear, Paper
