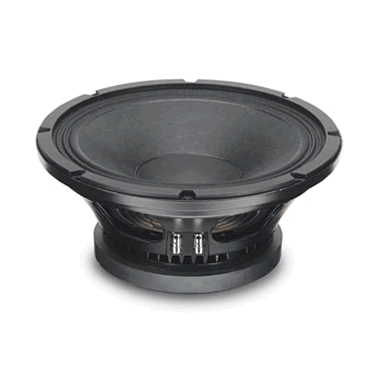

18 Sound 12MB700 Very High Output MB Ferrite Driver

101,5 dB SPL 1W / 1m sensitivity
75 mm (3 in) Interleaved Sandwich Voice coil (ISV)
450 W AES power handling
Double Demodulating Rings (DDR) for lower distortion
Improved heat dissipation via unique basket design
Weather protected cone and plates for outdoor usage
Ideal for compact two way and multiway systems

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 12MB700

note: Price includes VAT

GENERAL SPECIFICATIONS
Nominal Diameter 300 mm (12 in)
Rated Impedance 8 Ohm
AES Power 450 W
Program Power 600 W
Peak Power 1200 W
Sensitivity 101,5 dB
Frequency Range 60 ÷ 5000 Hz
Power Compression @-10dB 0,4 dB
Power Compression @-3dB 1,5 dB
Power Compression @Full Power 2,8 dB
Max Recomm. Frequency 4000 Hz
Recomm. Enclosure Volume 10 ÷ 80 lt. (0,3 ÷ 2,83 cuft)
Minimum Impedance 5,7 Ohm at 25°C
Max Peak To Peak Excursion 22 mm (0,87 in)
Voice Coil Diameter 75 mm (3 in)
Voice Coil Winding Material aluminum
Suspension M-roll, Polycotton
Cone Curvilinear, Paper
