18 Sound 10NW650 300 Watt 8ohm 10" LF Neodymium Loudspeaker

£129.95

Quantity:

18 Sound 10NW650 8ohm 300 watt Low Frequency Neodymium Speaker

96 dB SPL 1W / 1m average sensitivity
65 mm (2.5 in) aluminum edgewound voice coil
600 W program power handling
High excursion design for low frequency clarity and punch
Weather protected cone and coated plates for outdoor usage
Ultra lightweight design
Suitable for line array applications and multiway systems
Superb Bass Guitar driver

Designed & manufactured in Italy and provided exclusively by Lean Business, this Eighteen Sound speaker comes complete wth 2 years warranty.

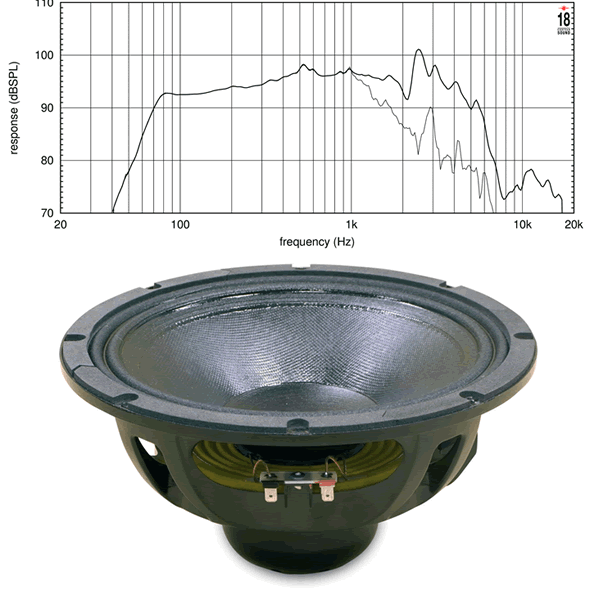

See specification tab for technical details or Click HERE for full details, response curves and Thiele & Small parameters. (opens in new window)

Model: 18 Sound 10NW650
note: Price includes VAT

GENERAL SPECIFICATIONS
Nominal Diameter 260 mm (10 in)
Rated Impedance 8 Ohm
AES Power 300 W
Program Power 600 W
Peak Power 1200 W
Sensitivity 96 dB
Frequency Range 60 ÷ 6000 Hz
Power Compression @-10dB 0,5 dB
Power Compression @-3dB 1,3 dB
Power Compression @Full Power 2,3 dB
Max Recomm. Frequency 1800 Hz
Recomm. Enclosure Volume 10 ÷ 40 lt. (0,35 ÷ 1,41 cuft)
Minimum Impedance 6,0 Ohm at 25°C
Max Peak To Peak Excursion 25 mm (0,98 in)
Voice Coil Diameter 65 mm (2,5 in)
Voice Coil Winding Material Edgewound Aluminum
Suspension Double-roll, Polycotton
Cone Curvilinear profile, water resistant, high damping pulp

THIELE SMALL PARAMETERS
Fs 51 Hz
Re 5,0 Ohm
Sd 0,0346 sq.mt. (53,6 sq.in.)
Qms 8,00
Qes 0,29
Qts 0,28
Vas 48 lt (1.70 cu.ft.)
Mms 34 g (0.07 lb)
BL 14 Tm
Linear Mathematical Xmax ± 7 mm (±0.28 in)
Le (1kHz) 0,70 mH
Ref. Efficiency 1W@1m (half space) 95,2 dB

MOUNTING INFORMATIONS
Overall diameter 260 mm (10.24 in)
N. of mounting holes 8
Mounting holes diameter 6,1 mm (0.24 in)
Bolt circle diameter 243,5 mm (9.59 in)
Front mount baffle cutout ø 230 mm (9.06 in)
Rear mount baffle cutout ø 231 mm (9.09 in)
Total depth 131,8 mm (5.19 in)
Flange and gasket thickness 9,8 mm (0.39 in)
Net weight 2,7 kg (5.95 lb)
Shipping weight 3,15 kg (6,95 lb)
CardBoard Packaging dimensions 275 x 275 x 170 mm (9.25 x 9.25 x 6.69 in)
